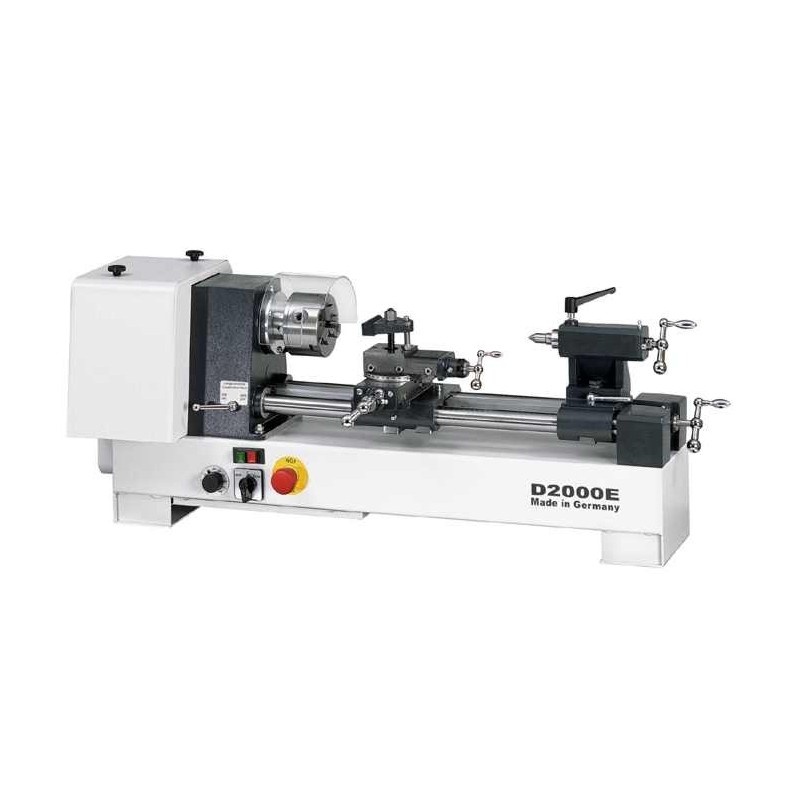

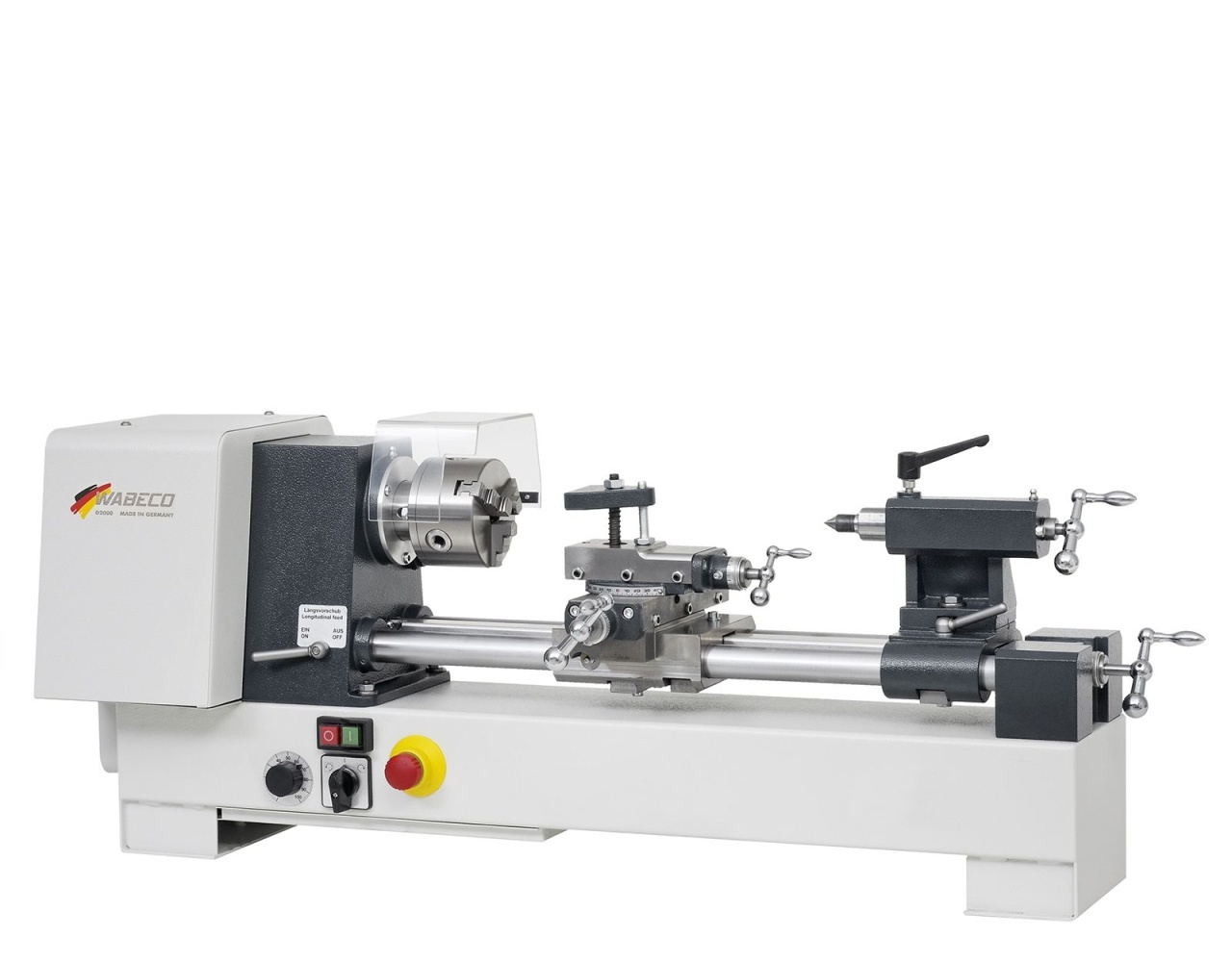

10108 Strung de banc WABECO D2000E
23.693,55 RON
Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.
Descriere
- Model de bază
- ghidaje cilindrice din oțel
- alezaj ax principal Ø 20 mm
- mandrină de strung cu 3 fălci Ø 100 mm
- punct mort MT2
- șuruburi de avans - axuri filetate precise
- putere de acționare principală 1,4 kW, 30 - 2300 rpm
- distanță centru 350 mm
- înălțime centru 110 mm
- alezaj ax principal Ø 20 mm
- mandrină de strung cu 3 fălci Ø 100 mm
- punct mort MT2
- șuruburi de avans - axuri filetate precise
- putere de acționare principală 1,4 kW, 30 - 2300 rpm
- distanță centru 350 mm
- înălțime centru 110 mm
Date tehnice:
| Steel cylindrical guideways | |
| precisely ground cylindrical columns made from solid material | ● |
| made of highest quality steel | ● |
| high rigidity | ● |
| optimal swarf waste | ● |
| Working range | |
| center distance | 350 mm |
| center height | 110 mm |
| turning Ø above cross slide | 126 mm |
| turning Ø above the guideways | 210 mm |
| Machine precision | |
| machine precision according to DIN 8606 | ● |
| true running accuracy of spindle nose | 0.005 mm |
| cylindrical turning to 100 mm cantilevered | 0.01 mm |
| cylindrical turning with a finishing cut to 300 mm between the tips | ± 0.015 mm |
| Main drive motor | |
| single-phase series-wound motor speed controlled 230V, 50/60 Hz | 1.4 kW |
| as direct current model with permanent, closed loop rpm control system | ● |
| electronically infinitely variable drive | 30 - 2300 rpm |
| main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer | ● |
| with overload protection | ● |
| dynamic torque throughout the entire speed range | ● |
| high torque even in the lowest speed range | ● |
| Silent running | |
| extremely silent running due to innovative belt drive | ● |
| Drive technology | |
| drive electronics with multiple fault monitoring circuits | ● |
| e.g. turning a steel shaft Ø 50 mm in one infeed | approx. 5 mm |
| Headstock | |
| main spindle in 2 adjustable precision DIN tapered roller bearings | ● |
| right-left rotation of the main spindle | ● |
| intermediate gear between main spindle and drive | ● |
| Main spindle bore | |
| main spindle bore Ø 20 mm | ● |
| Main spindle | |
| according to DIN 6350 | ● |
| main spindle Ø 70 mm | ● |
| Feed screws | |
| precise threaded spindles | ● |

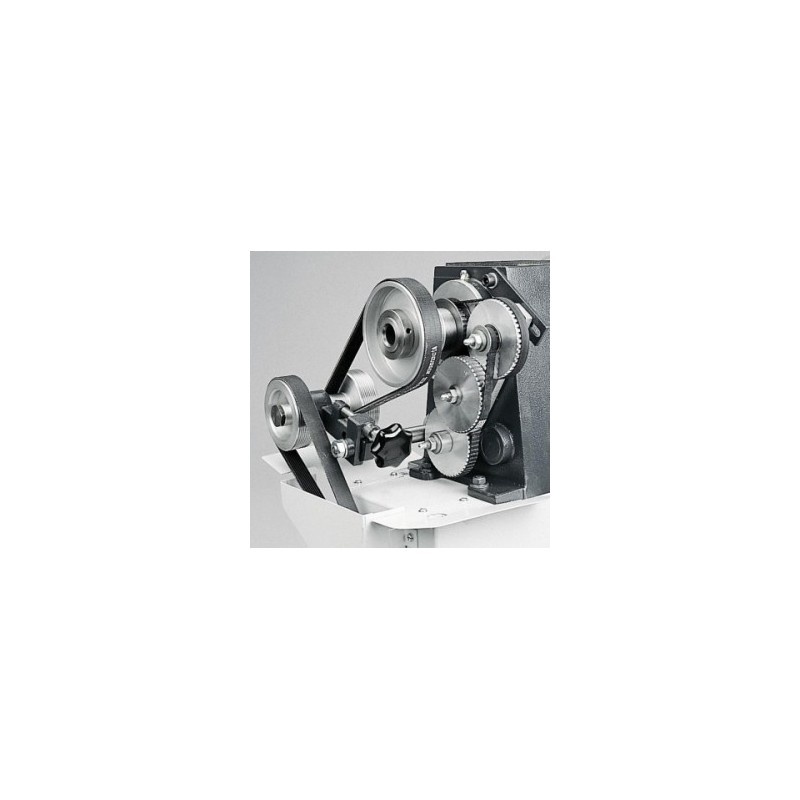

| Lead screw drive | |
| with lead screw drive and change gear quadrant for automatic feed | 0.085 mm/rev |
| Overload clutch | |
| on the lead screw and the lead screw drive to avoid damage to the feed system | ● |
| Thread cutting prepared | |
| change gear set | optional |
| change gear set for thread cutting | metric 0.25 - 6.0 mm inch 10 - 36 TPI |
| and for automatic feed | 0.16 mm/rev |

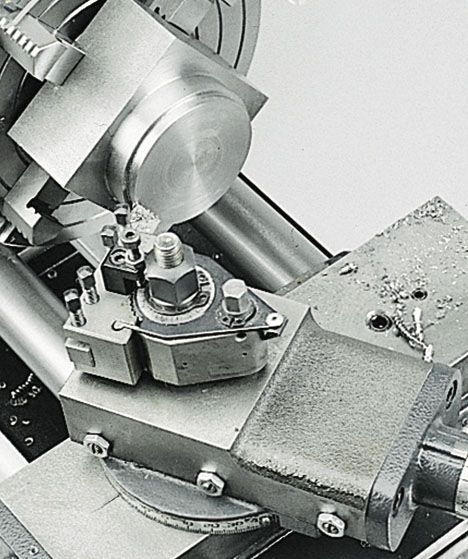

| Tool slide | |
| universally adjustable | ● |
| dovetail guides readjustable free of play | ● |
| reading accuracy of the scale rings | 0.05 mm |
| adjustability of cross slide | 110 mm |
| adjustability of longitudinal slide | 58 mm |
| longitudinal slide can be swiveled through 360° | ● |
| max. height of turning tools | 20 mm |
| cutting scrapers prevent dirt and cuttings entering the guideways | ● |
| Tailstock with quick adjustment | |
| lateral adjustability of tailstock upper part | ± 10 mm |
| tailstock sleeve with inner morse taper MT2 | ● |
| quill adjustable | 65 mm |

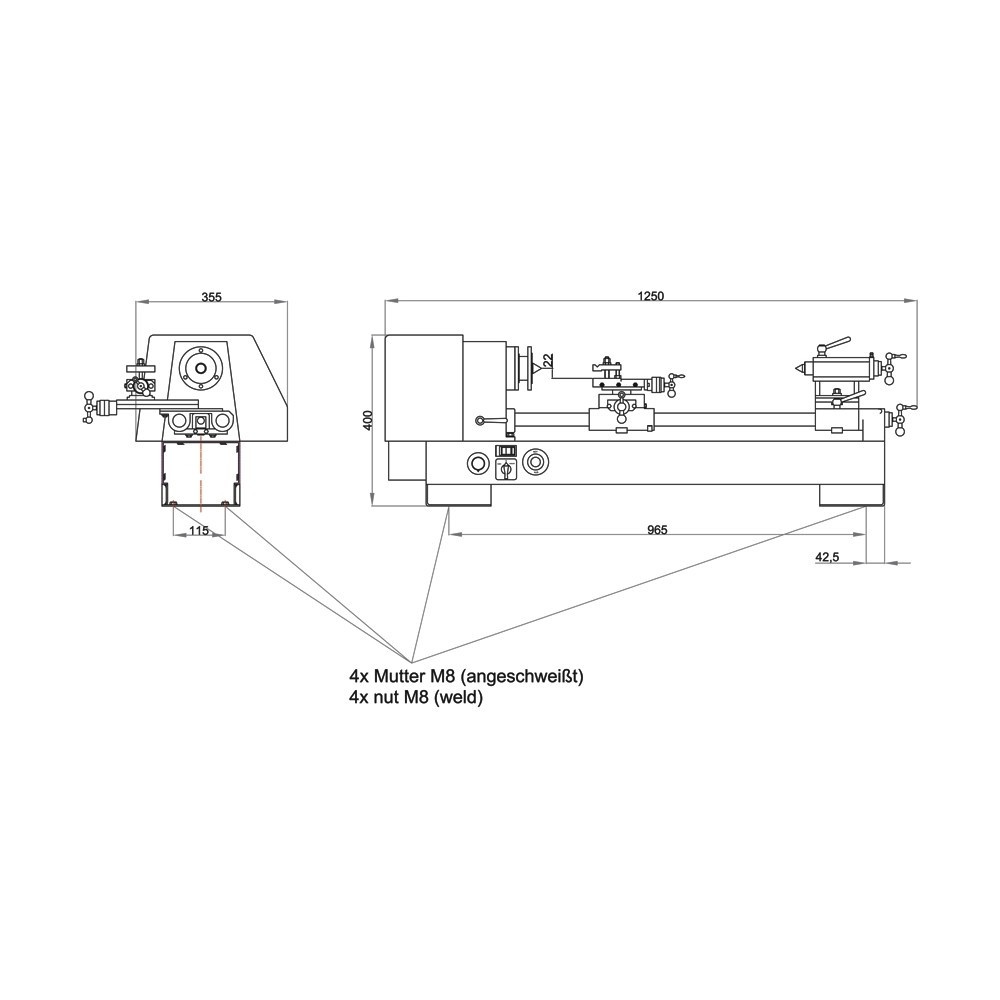

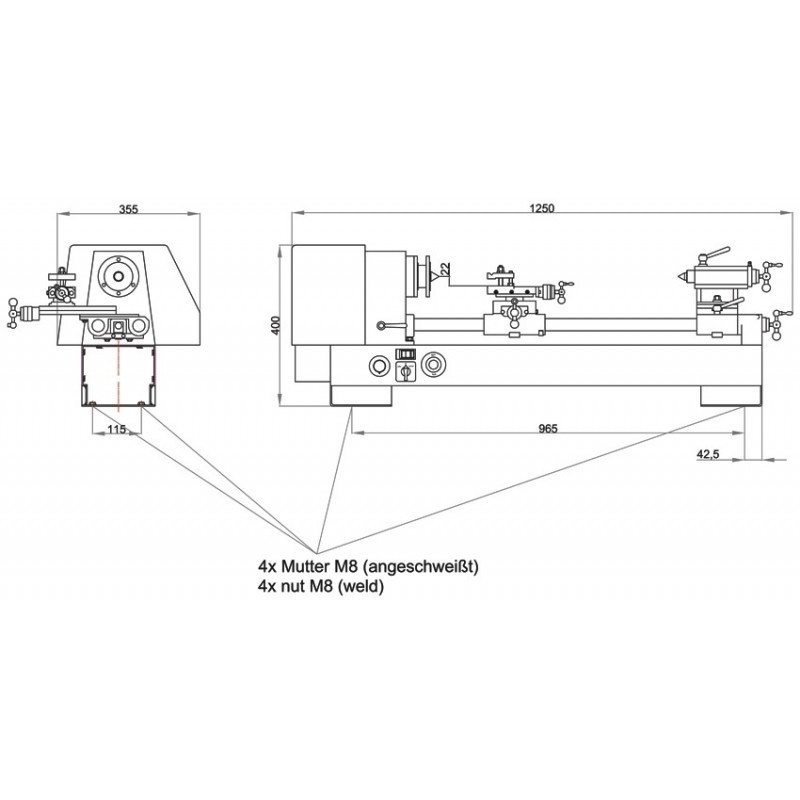

| Dimensions and weight | |
| machine dimensions without packaging | W1050 x D410 x H420 mm |
| weight without packaging | 59 kg |
