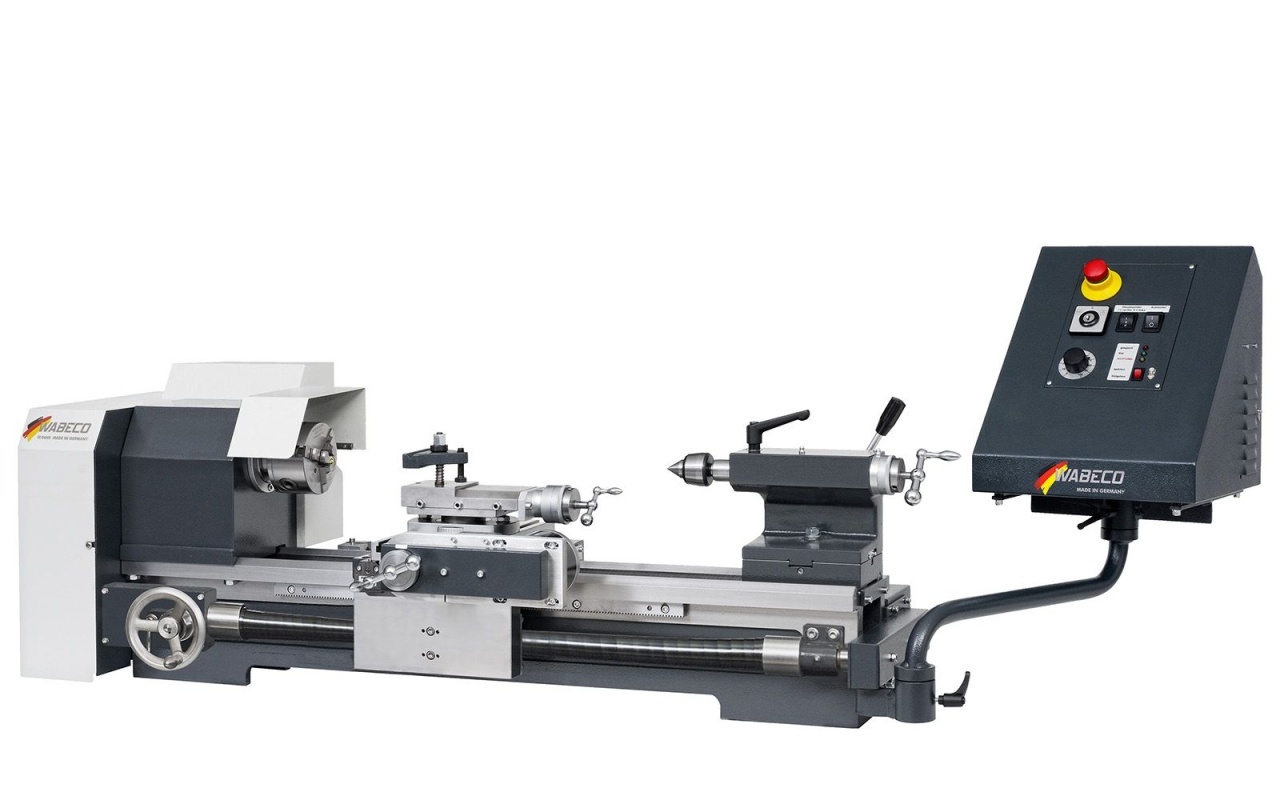

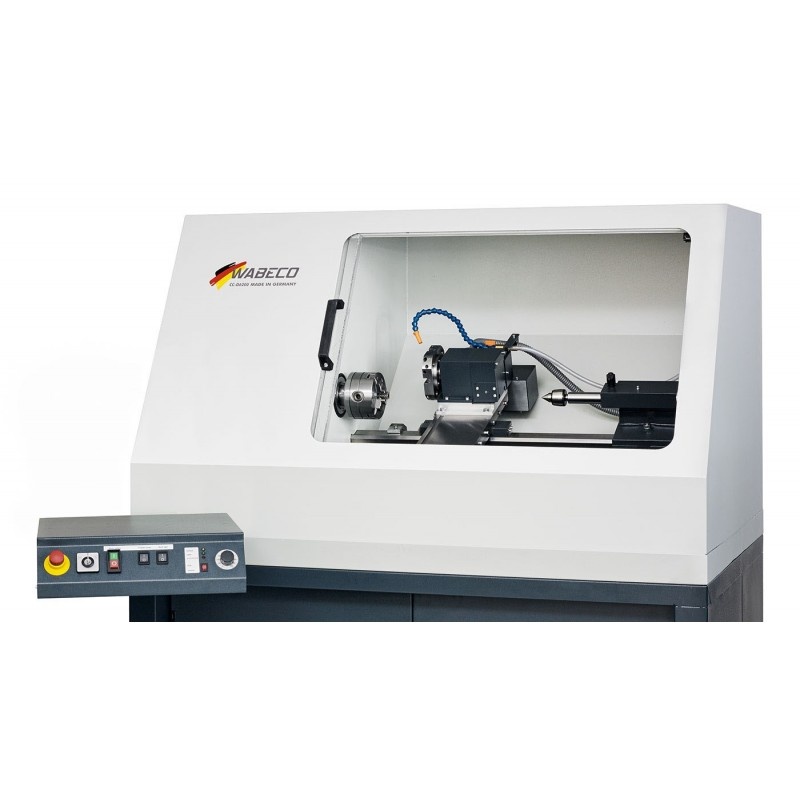

1060071 Strung CNC CC-D6200 HS KRS PROFI, WABECO

Name: 1060071 Strung CNC CC-D6200 HS KRS PROFI, WABECO
Brand: Wabeco
SKU: 1060071
Price: 88181 RON
Availability: InStock

88.181,00 RON

Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.

de la 4.556,02 RON / Luna

Avans pe gustul tau

Descriere

Prezentare de ansamblu:

- cu controler nccad PROFI și software de strunjire

- pat prismatic din fontă
- alezaj ax principal Ø 30 mm
- ax principal conform DIN 6350
- mandrină de strung cu 3 fălci Ø 125 mm
- centru viu MT2
- șuruburi de avans - șuruburi cu bile
- putere de acționare principală 2,5 kW, 50 - 5000 rpm
- distanță centru 600 mm
- înălțime centru 135 mm

Detalii tehnice:

Prismatic cast iron bed
prismatic cast iron bed made of diagonally ribbed gray cast iron	●
inductively hardened and ground guideways	●
Working range
center distance	600 mm
center height	135 mm
workpiece diameter	max. 270 mm
turning Ø above the guideways	170 mm
bed width	180 mm
Machine precision
machine precision according to DIN 8606	●
true running accuracy of spindle nose	0.005 mm
cylindrical turning to 100 mm cantilevered	0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips	± 0.015 mm
Main drive motor
frequency-controlled servomotor 230V, 50/60 Hz	2.5 kW
due to high speed suitable for small tools	●
brushless	●
electronically infinitely variable drive	50 - 5000 rpm
main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer	●
with overload protection	●
dynamic torque throughout the entire speed range	●
high torque even in the lowest speed range	●
Silent running
extremely silent running due to innovative belt drive	●
Drive technology
drive electronics with multiple fault monitoring circuits	●
e.g. turning a steel shaft Ø 50 mm in one infeed	approx. 5 mm
Headstock
housing made of grey cast iron	●
V-shaped slot scraped by hands	●
main spindle in 2 adjustable precision DIN tapered roller bearings	●
right-left rotation of the main spindle	●
Main spindle bore
main spindle bore Ø 30 mm	●
with ground taper insert in the main spindle	MT3
Main spindle
according to DIN 6350	●
main spindle Ø 70 mm	●
Feed screws
ball screws	●
with free of play ball lock nuts	●
incl. lead screw cover to protect the lead screw against swarf	●
to prevent premature wear and loss of precision	●
Lead screw drive
with lead screw drive and change gear quadrant for automatic feed	0.085 mm/rev
tumbler gear for left- and right-hand threads	●
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system	●

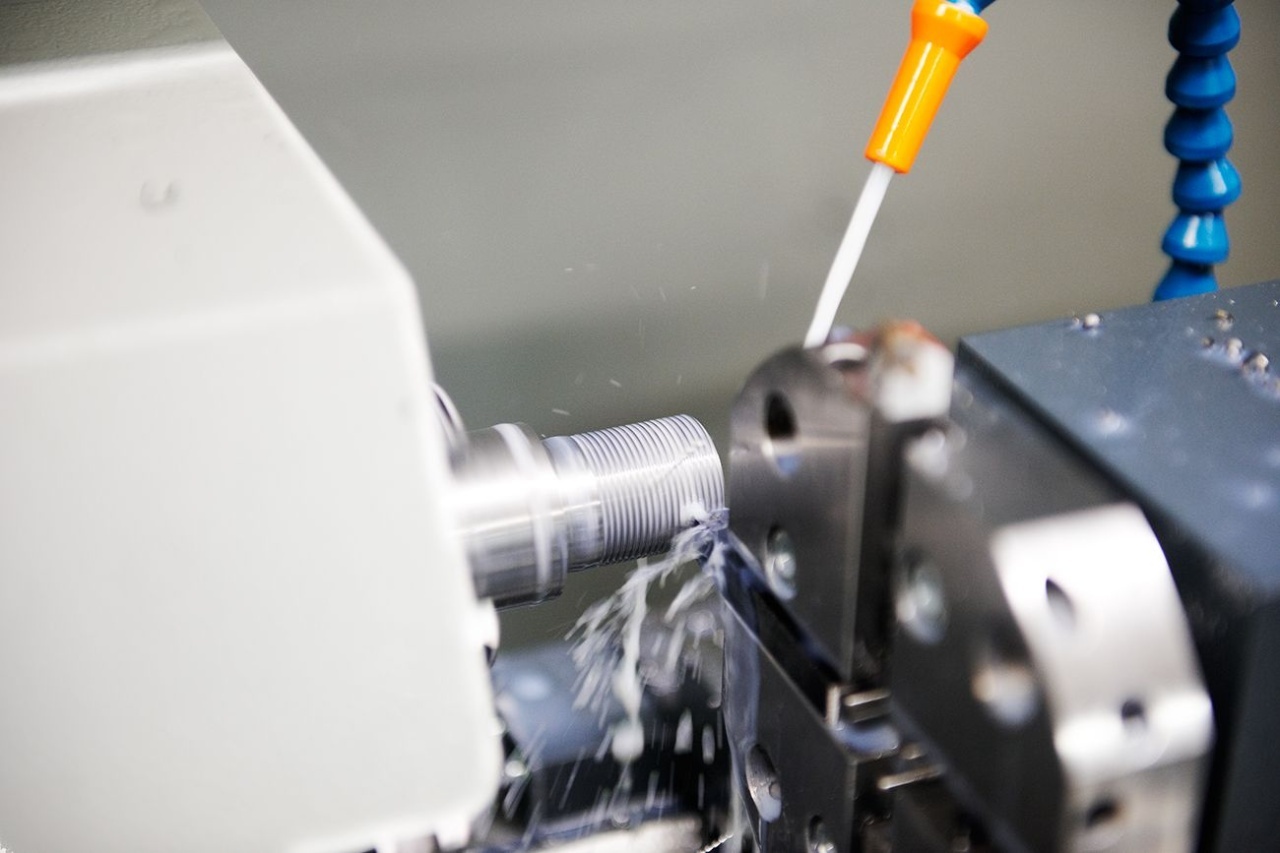

Thread cutting (in conventional operation)
change gear set for thread cutting	metric 0.25 - 7.0 mm inch 10 - 40 TPI
and for automatic feed	0.16 mm/rev

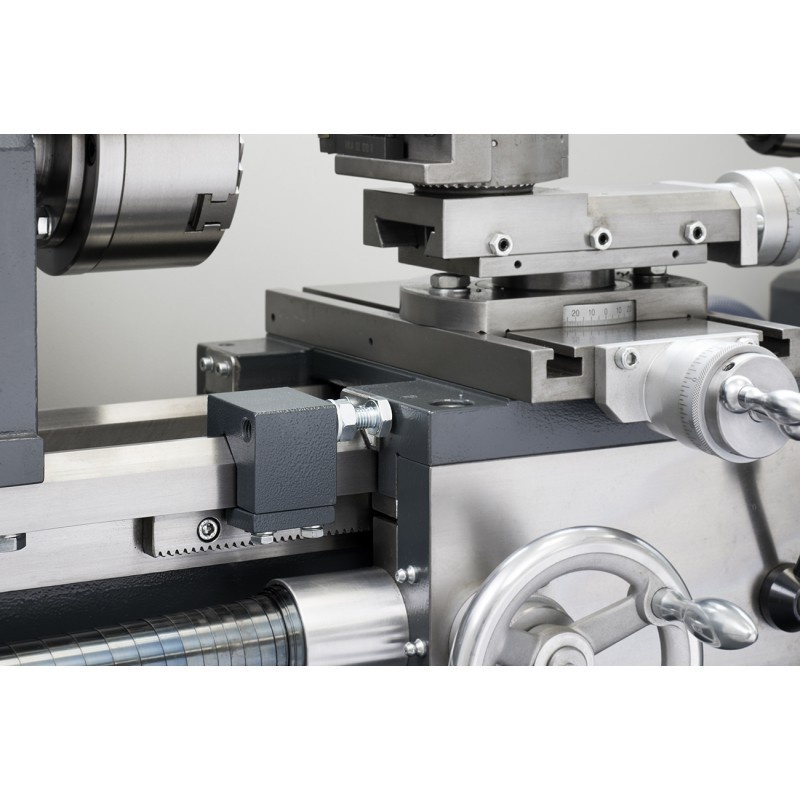

Tool slide
universally adjustable	●
dovetail guides readjustable free of play	●
reading accuracy of the scale rings	0.05 mm
adjustability of cross slide	140 mm
adjustability of longitudinal slide	60 mm
longitudinal slide can be swiveled through 360°	●
max. height of turning tools	20 mm
cutting scrapers prevent dirt and cuttings entering the guideways	●
Tailstock with quick adjustment
lateral adjustability of tailstock upper part	± 10 mm
tailstock sleeve with inner morse taper MT2	●
quill adjustable	65 mm
scale ring reading accuracy	0.1 mm
High-performance stepper motors
in X- and Z- axis	●
maintenance-free	●
high feed and acceleration values	●
high holding torque	●
Travel speed (rapid traverse)
in X- and Z-axis	30 - 1000 mm/min
Limit switch
in X- and Z-axis	●
mechanical single limit switch	●
Dimensions and weight
machine dimensions without packaging	W1230 x D510 x H470 mm
weight without packaging	172 kg
