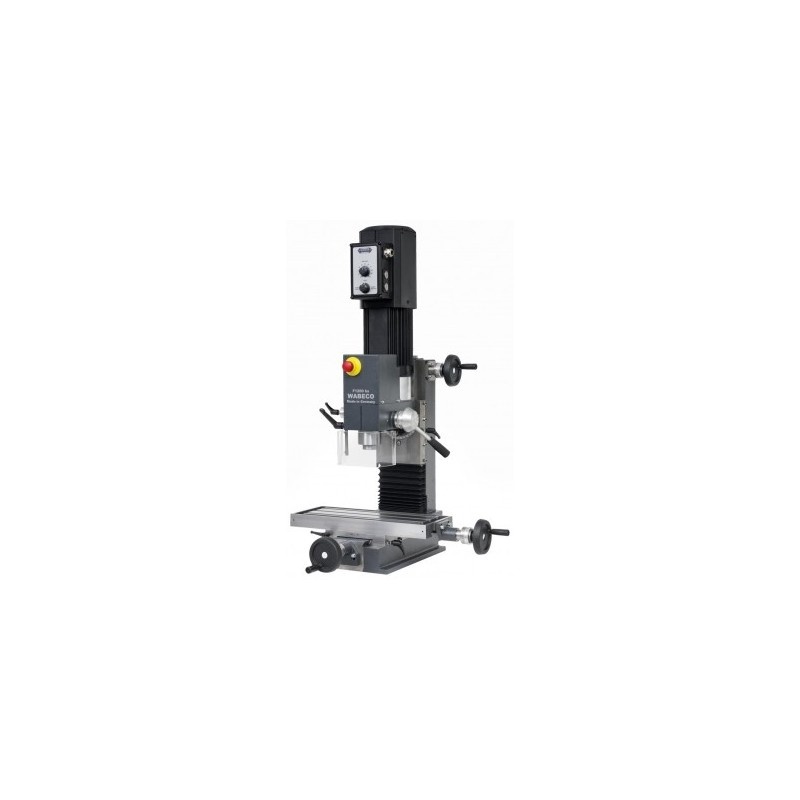

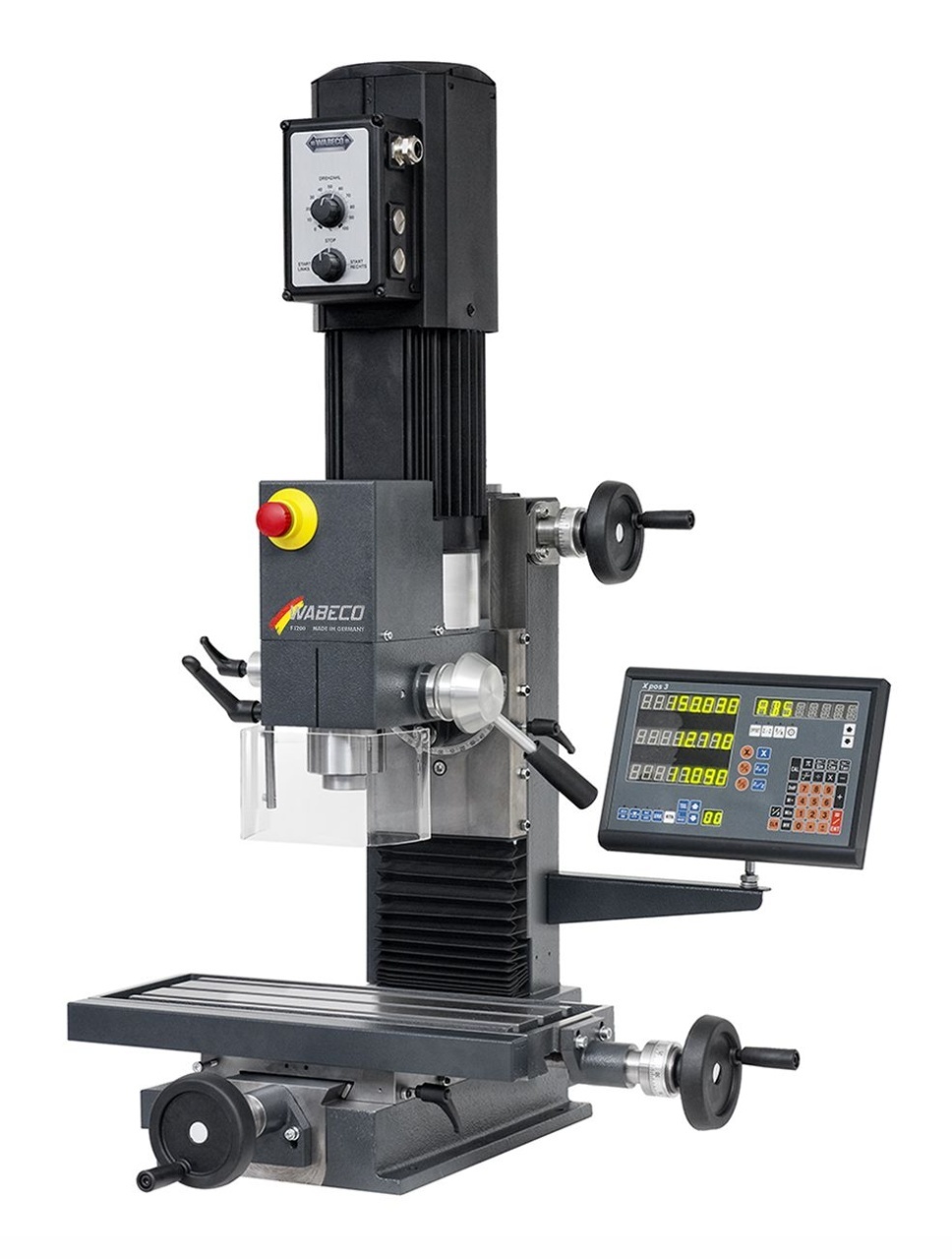

Freza de banc WABECO F 1202 MT2 HIGH SPEED
Descriere

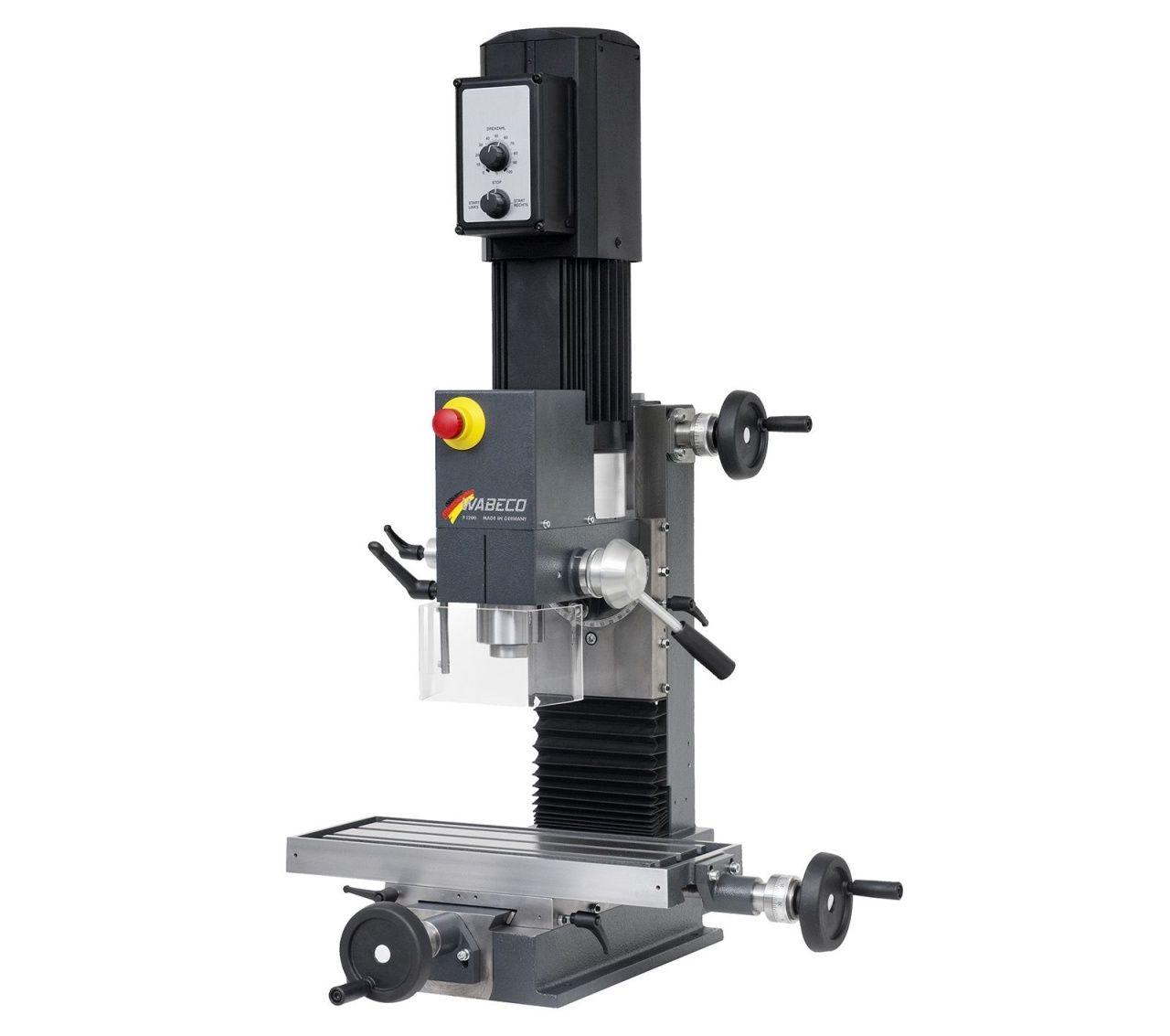

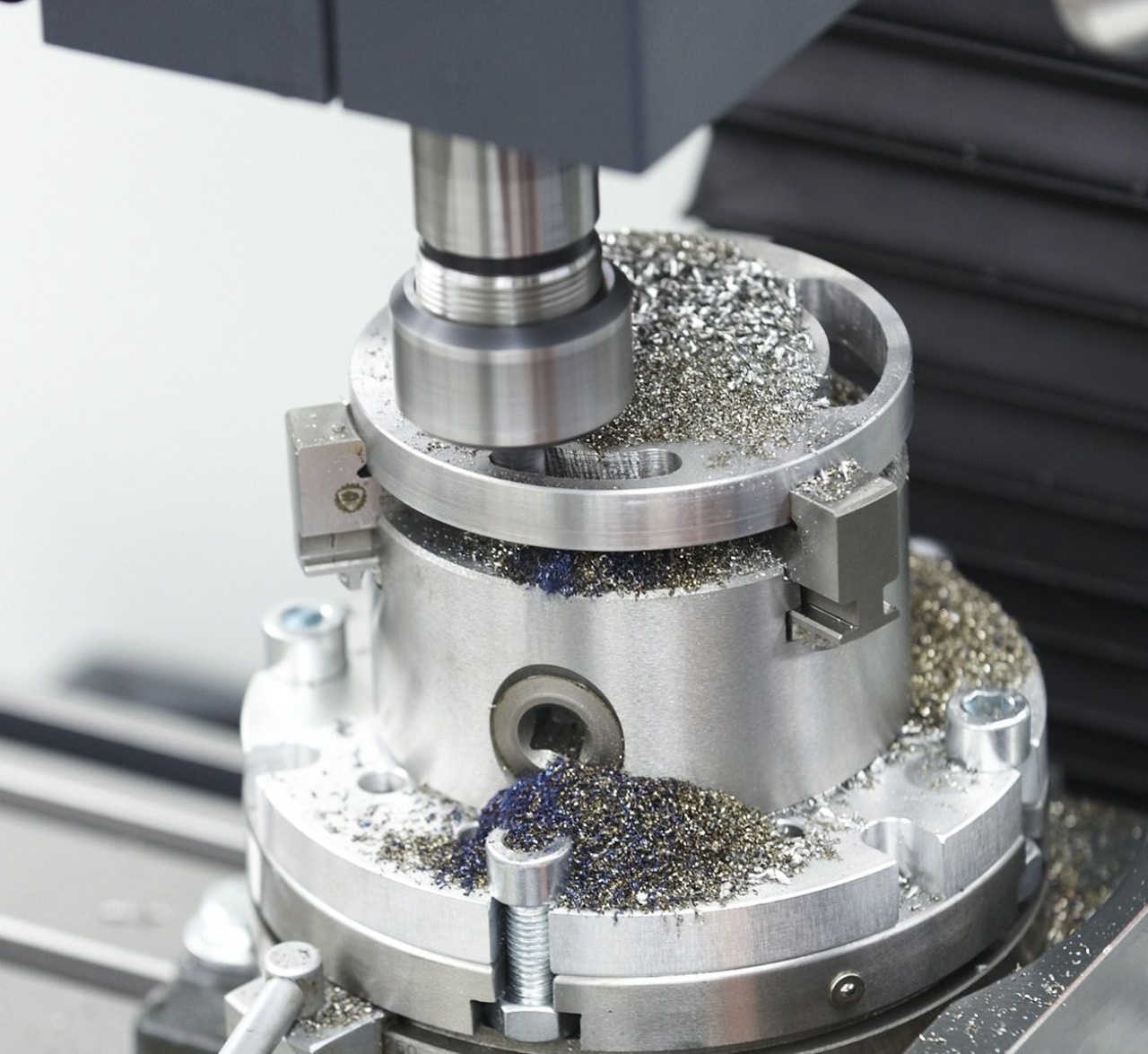

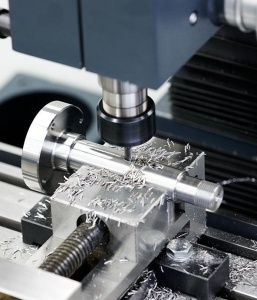

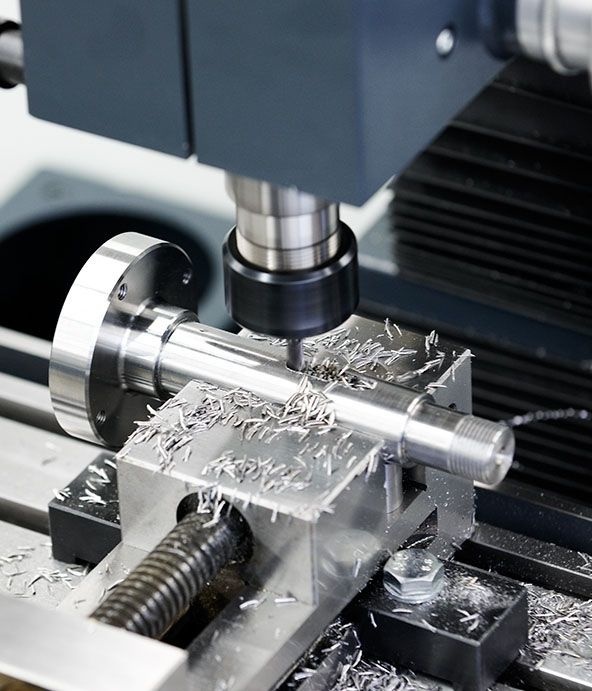

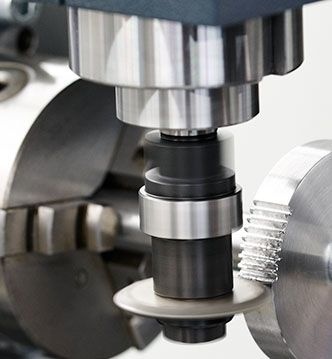

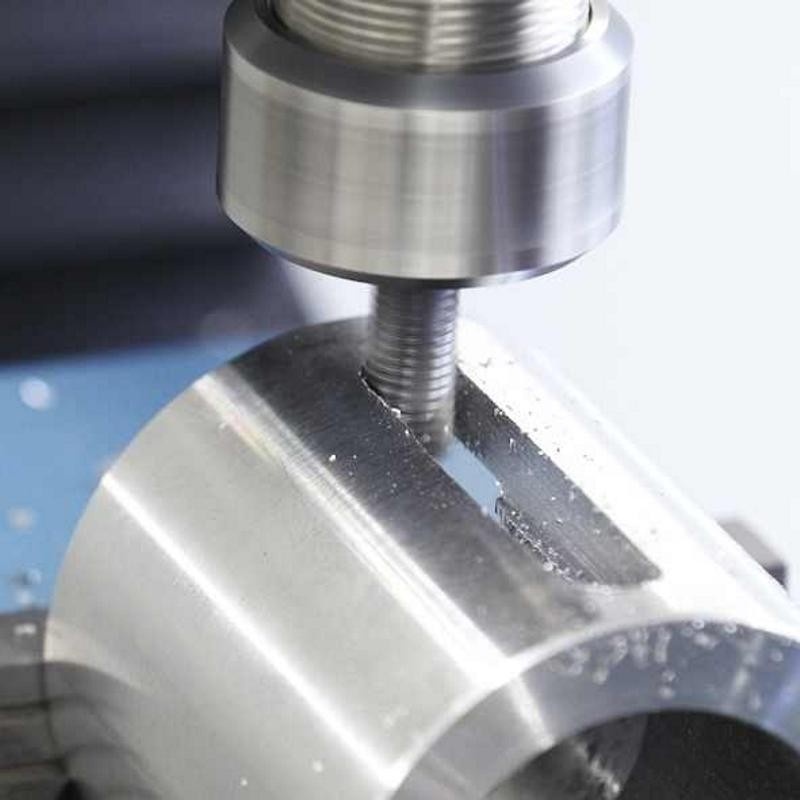

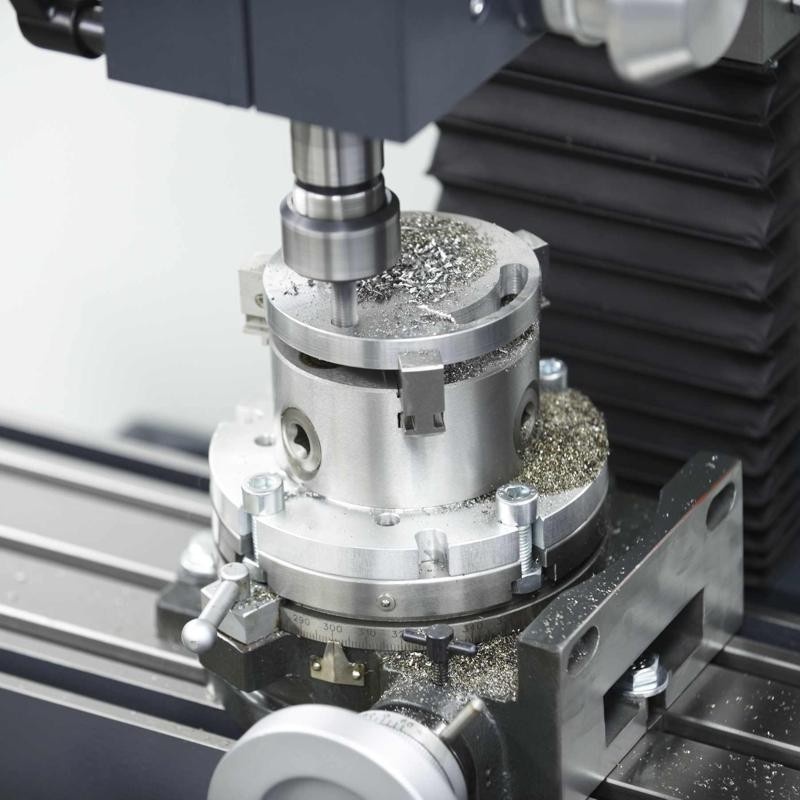

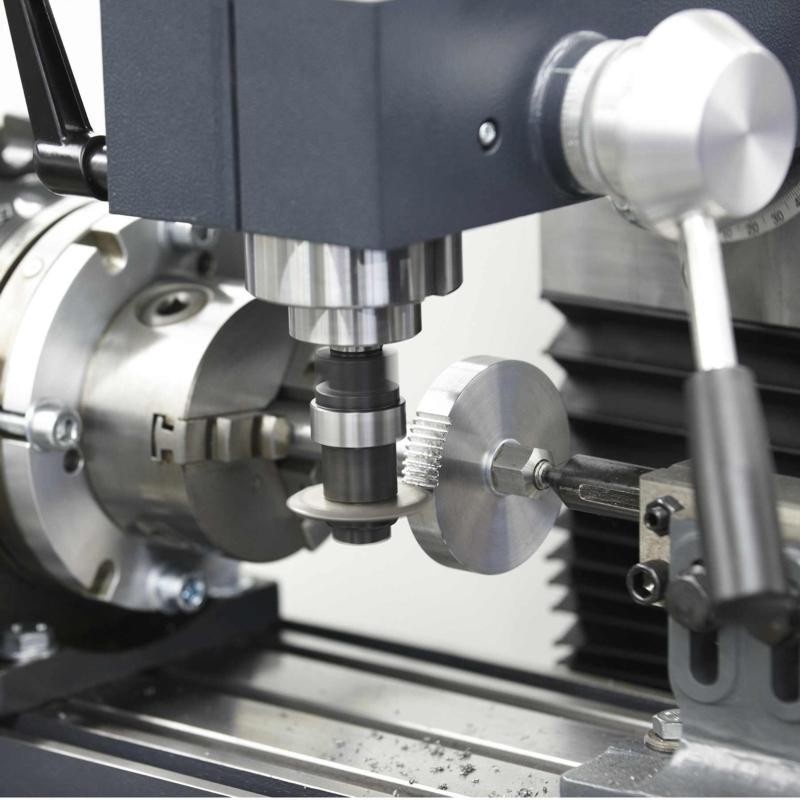

Freza de banc WABECO F 1202E HIGH SPEED
– garantam precizia pentru ca productia are loc in Germania pe masini de precizie
– fabricata pentru precizie si se emite un raport de test
– cu variator electronic al turatiei, infinit variabil de la 140 - 3000 r.p.m. transmisia este dinamica
– motor puternic cu invertor, 1,4kW, 230 V, 50Hz
– con MT2
– protectie impotriva atingerii axului principal, se indeparteaza usor pentru schimbarea sculelor
– ghidaje reglabile fara joc pe axa Z
– surub de avans fara joc, reglabile cu nut de bronz pentru axa Z

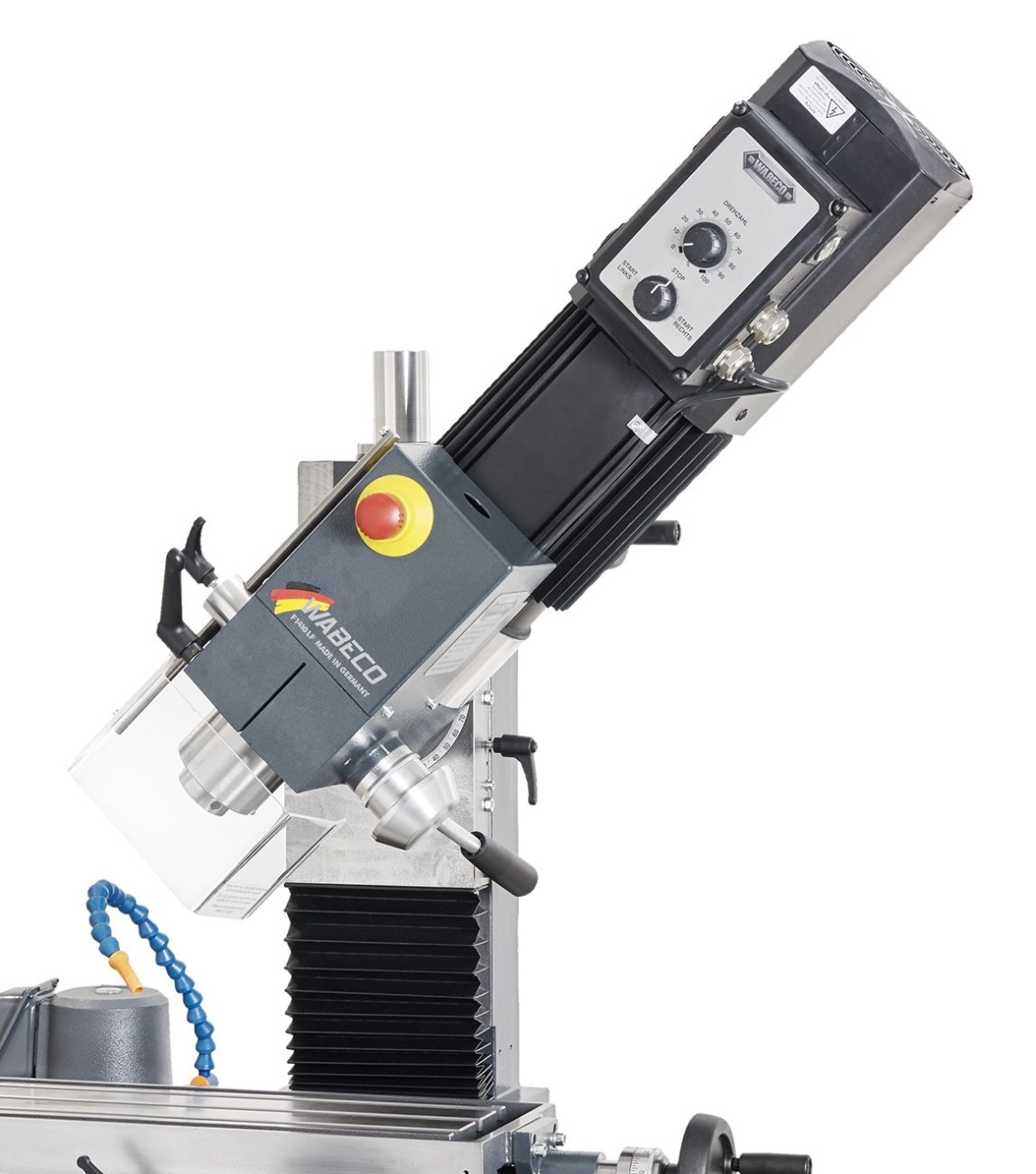

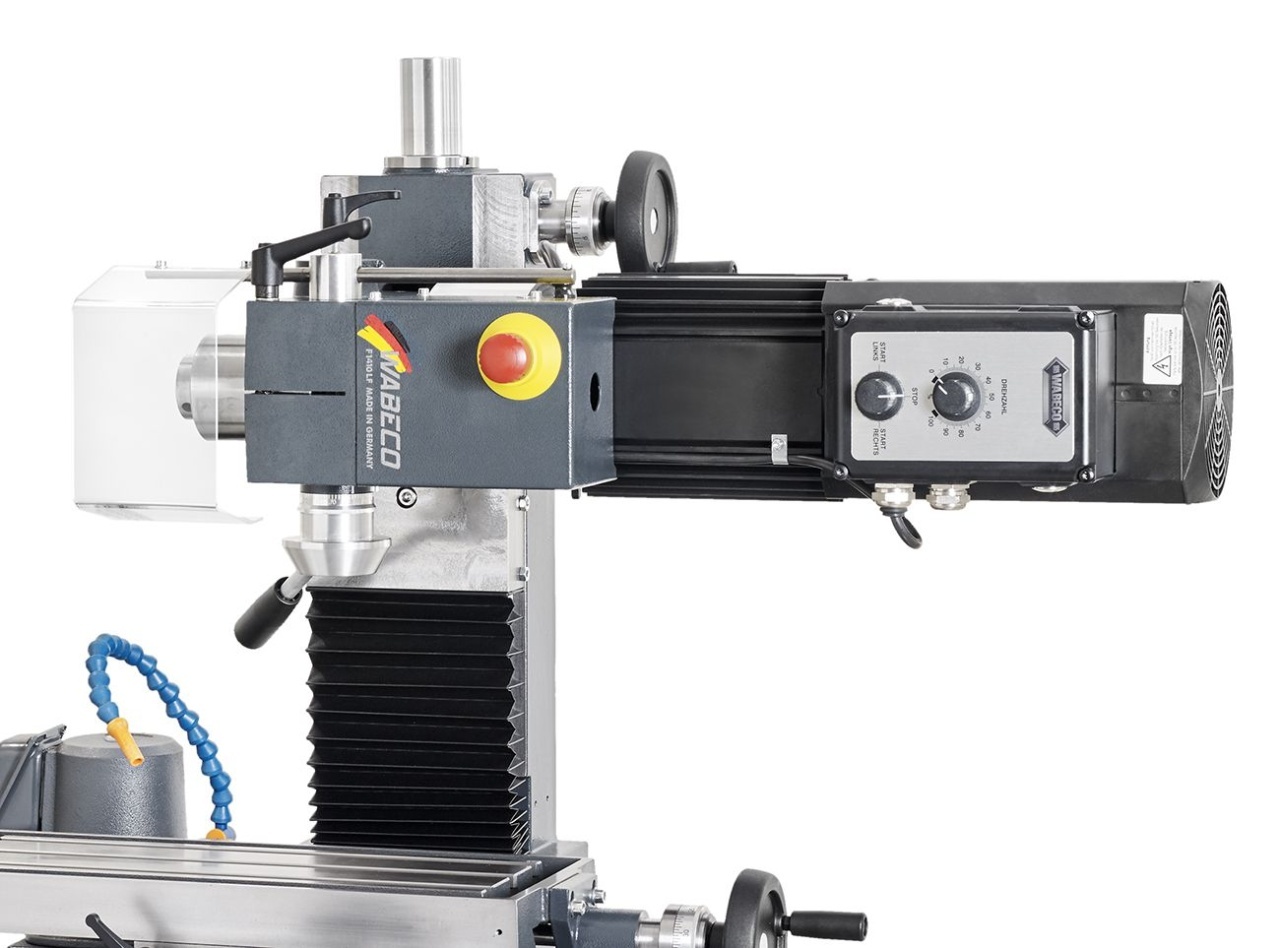

– capul frezei se regleaza pana la 90º ST/DR
– miscare de avans mica
– opritor gaurire
– protectii pentru ghidaje
– fixare exacta a penei pe toata suprafata
– cuplu constant pe toata plaja de turatii
– 5 ani garantie
Detalii tehnice

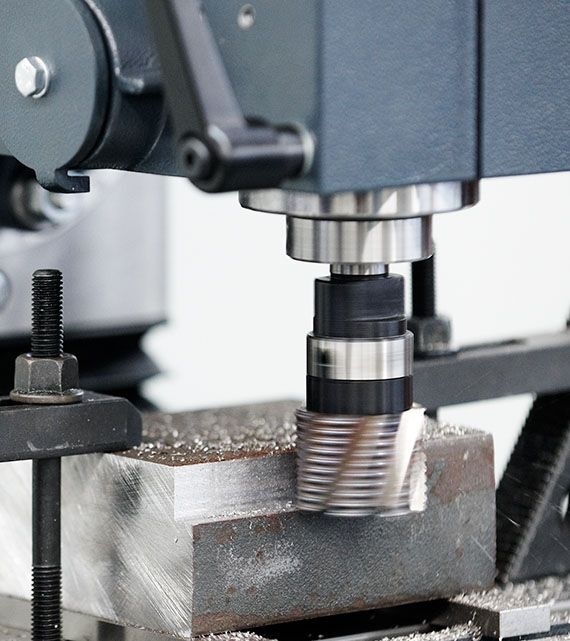

| Working range | |
| longitudinal travel X-axis | 260 mm |
| transverse travel Y-axis | 150 mm (optional 180 mm) |
| vertical travel Z-axis | 280 mm |
| drill stroke | 55 mm |
| distance milling table - tool spindle | min. 100 mm max. 380 mm |
| outreach tool spindle - column | 185 mm |
| Clamping table | |
| clamping table | 450 x 180 mm |
| number of T-slots | 3 |
| width of T-slots | 12 mm |
| center distance between T-slots | 50 mm |
| Machine precision | |
| machine precision according to DIN 8615 | ● |
| Main drive motor | |
| frequency-controlled servomotor 230 V, 50/60 Hz | 2.5 kW |
| due to high speed suitable for small tools e.g. for engraving work | ● |
| left-right rotation for thread cutting | ● |
| electronically infinitely variable drive | 100 - 7500 U/min |
| with overload protection | ● |
| dynamic torque throughout the entire speed range | ● |
| high torque even in the lowest speed range, e.g. for machining hard-to-cut materials | ● |
| Silent running | |
| extremely silent running due to innovative belt drive | ● |
| Drive technology | |
| drive electronics with multiple fault monitoring circuits | ● |
| e.g. milling in steel with a shank cutter Ø 10 mm with one infeed | approx. 10 mm |
| Milling head | |
| milling head can be swivelled through 90° on both sides (-90° to +90°) | ● |
| angle position easily read off of the large scale | ● |
| vertical positon can be preset by means of a hardened and ground conical index pin | ● |
| protective hood | ● |
| Quill stroke | |
| quill stroke with drilling depth stop | ● |

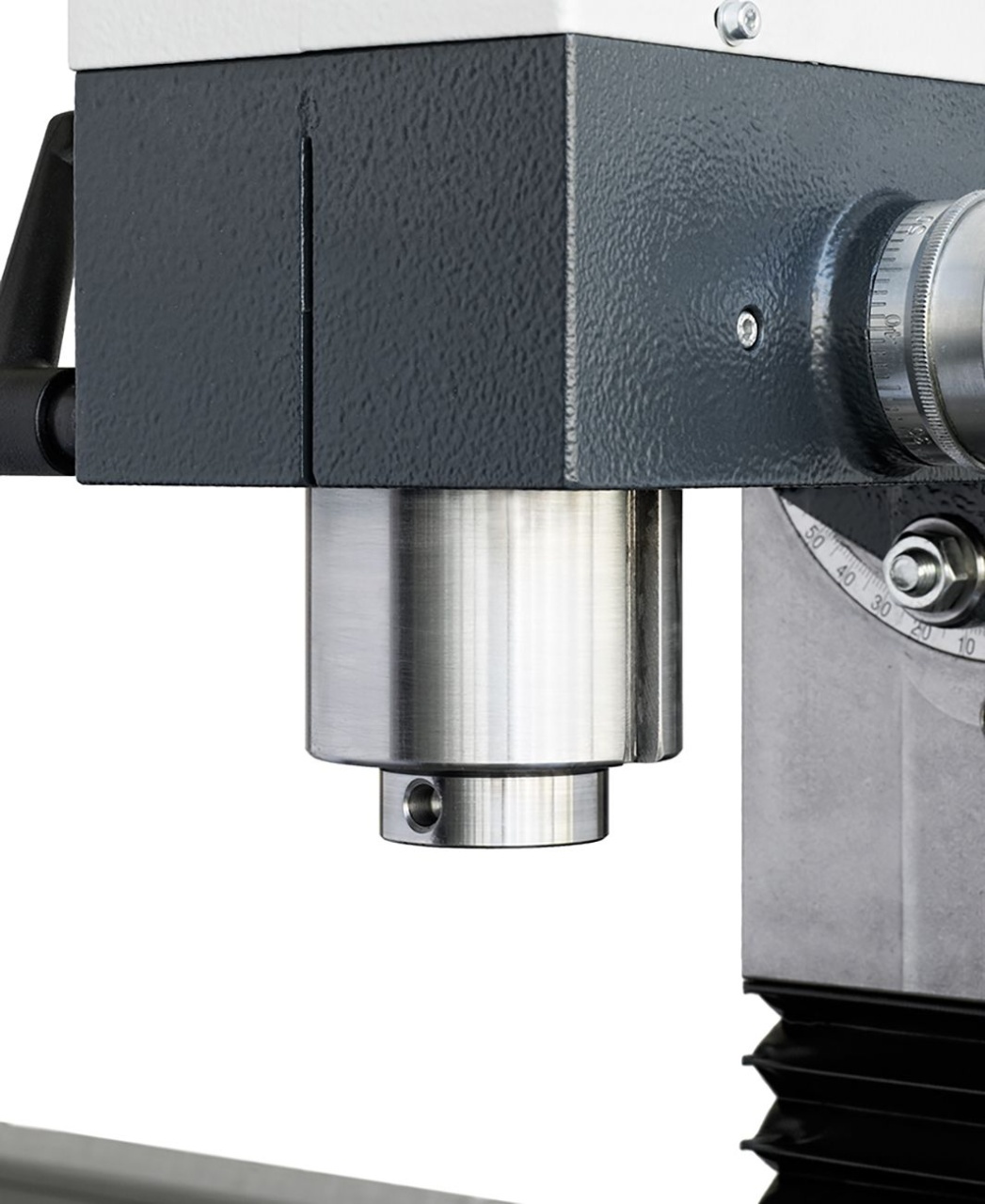

| form-fit clamping of the quill over the entire lateral surface | ● |
| reading accuracy scale ring - quill stroke | 0.1 mm |
| Tool spindle | |
| with re-adjustable anti-friction bearings arranged in a large dimensioned drilling- and milling quill | ● |
| true running accuracy of the tool spindle | 0.01 mm |
| wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running | ● |
| Tool holder | |
| MT2 with tightening thread M10 | ● |
| Tool clamping and ejecting system | |
| for clamping and ejecting the tools without extra effort | ● |
| Z-column and base plate | |
| made of ribbed gray cast iron | ● |
| Fine feed Z-axis | |
| fine feed in the Z-axis | ● |
| Guides | |
| dovetail guides | ● |
| free of play adjustable in all axes | ● |
| high workpiece accuracy | ● |
| 2 folding bellows for guide protection | ● |
| Axes locking device | |
| clean milling surface by fixing the individual axes | ● |
| Feed screws | |
| trapezoidal thread spindles in all axes | ● |
| adjustable by means of adjustable bronze double nuts | ● |
| reading accuracy of the scale rings 0.05 mm | ● |
| Dimensions and weight | |
| machine dimensions without packaging | W650 x D625 x H900 mm |
| weight without packaging | 96 kg |
