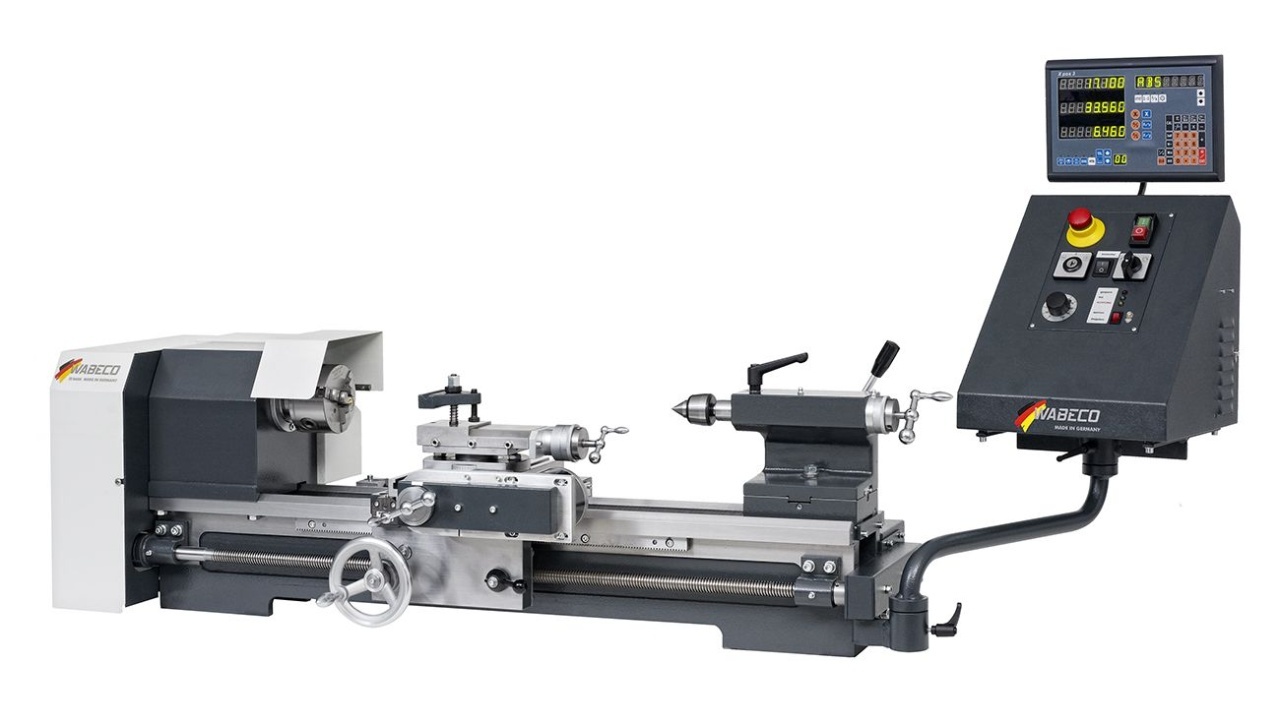

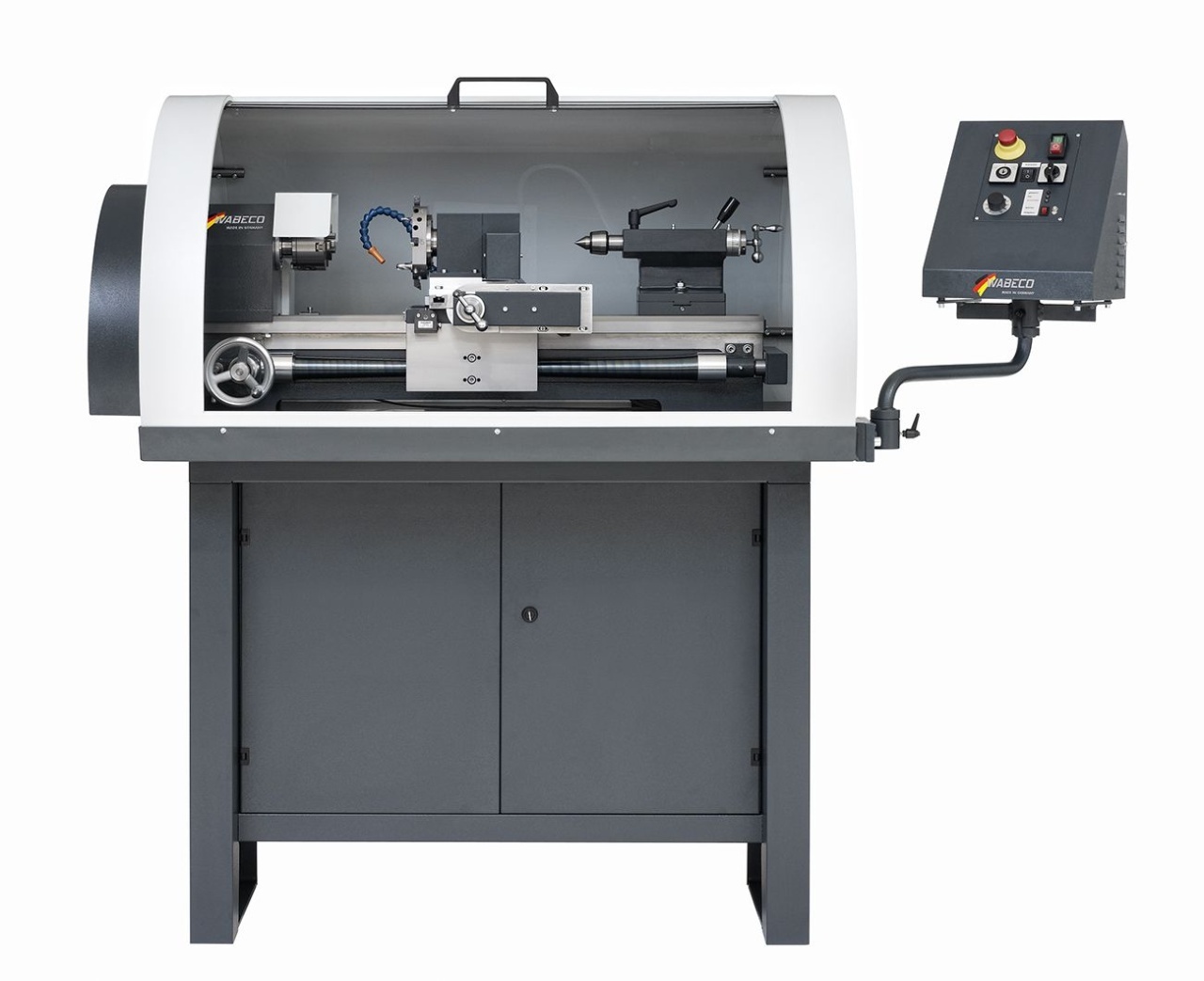

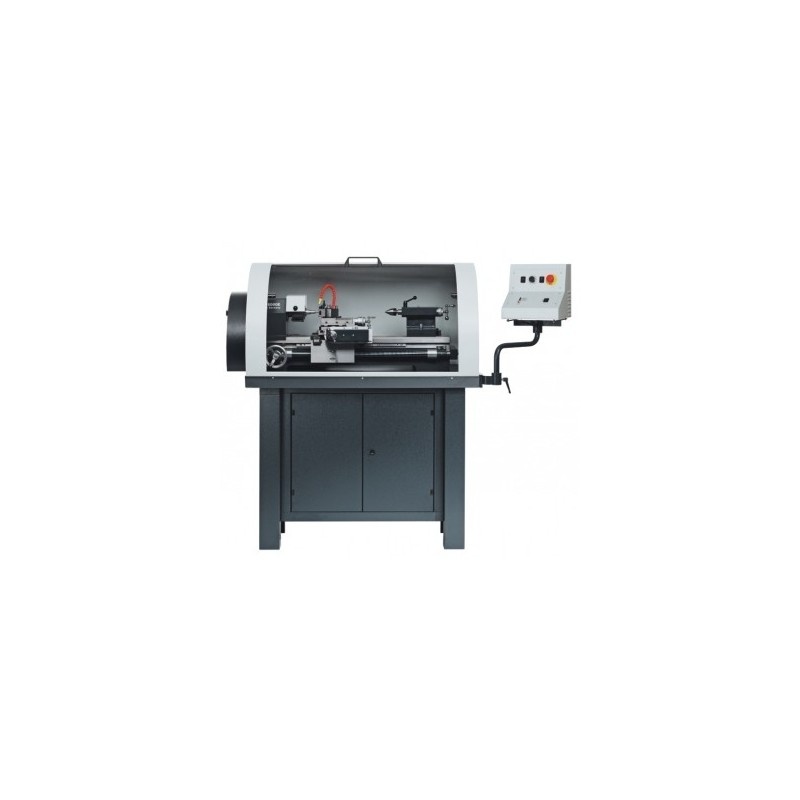

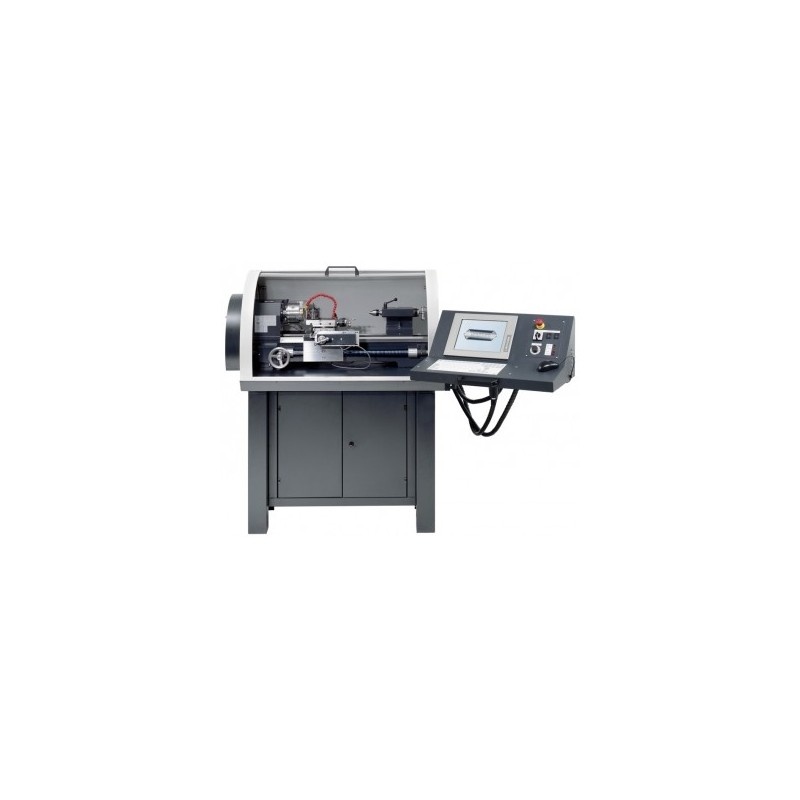

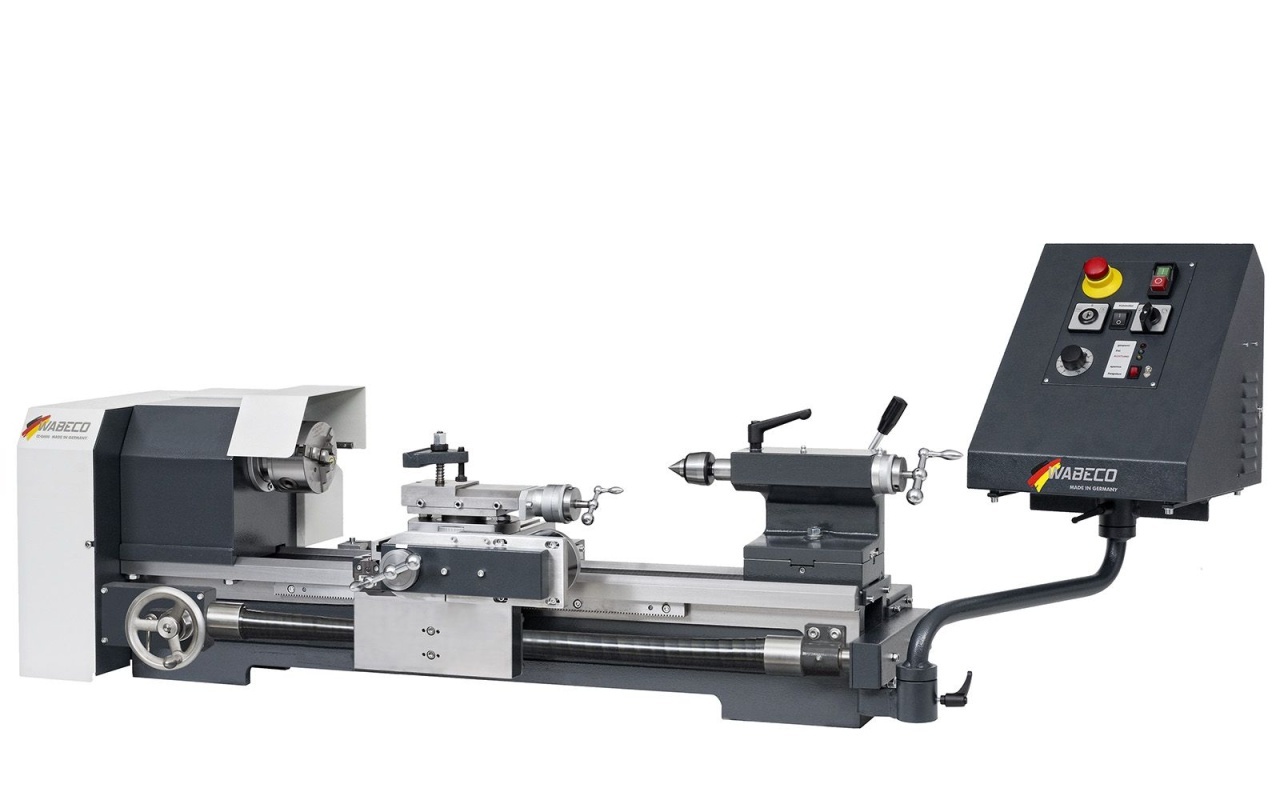

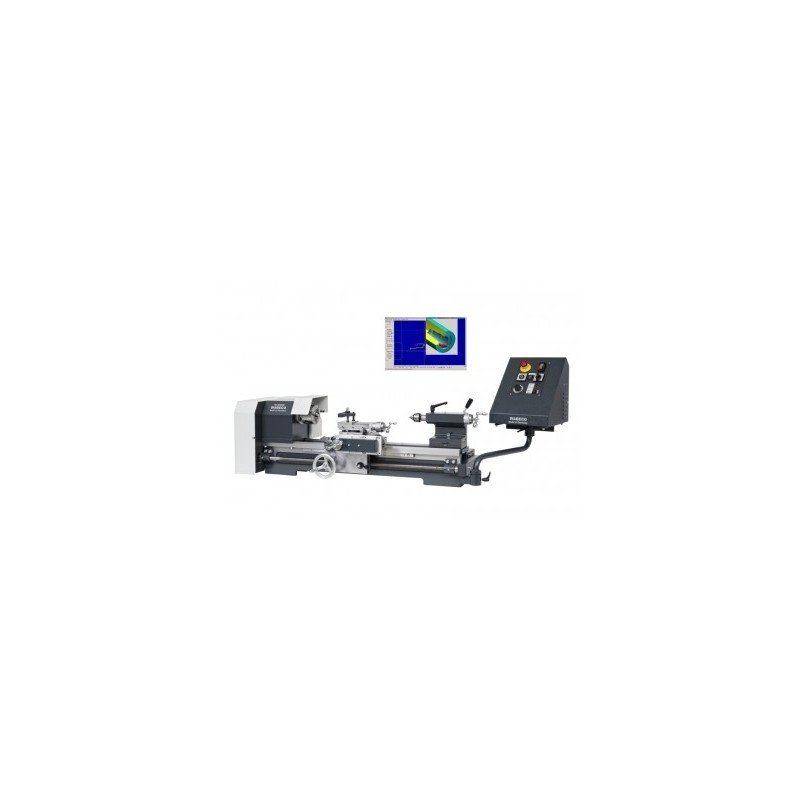

Strung de banc WABECO CNC, CC-D6000 KRS PROFI soft NCCAD , universal 125mm trei bacuri

73.539,50 RON
Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.
de la 3.799,54 RON / Luna
Avans pe gustul tau
Cod produs - SKU 1060021
Disponibil cu precomanda
Adauga la Favorite

Descriere

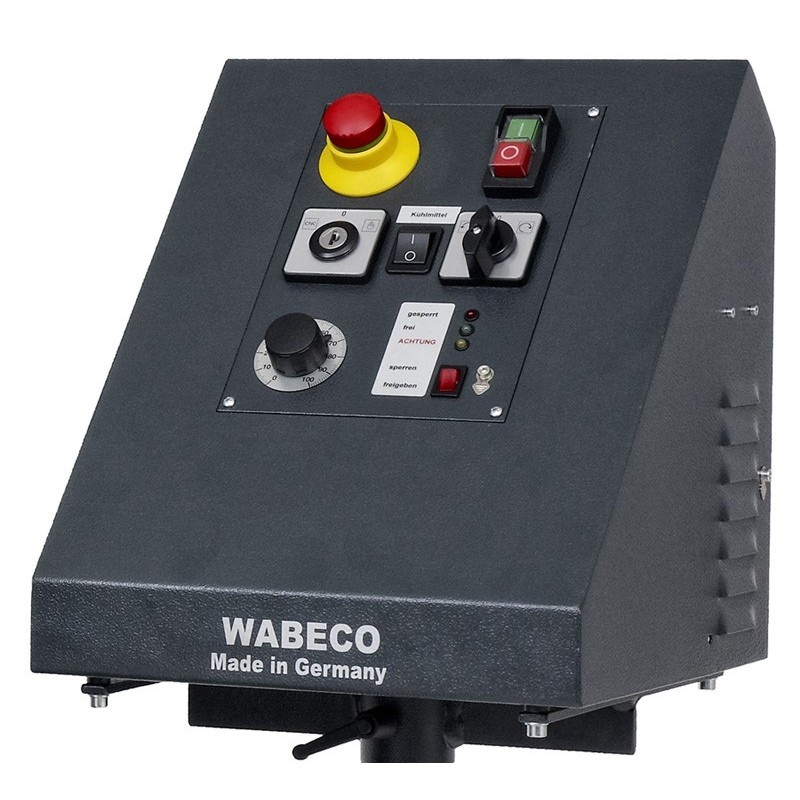

 - cu controler nccad PROFI și software de strunjire
 - pat prismatic din fontă
 - alezaj ax principal Ø 30 mm
 - ax principal conform DIN 6350
 - mandrină de strung cu 3 fălci Ø 125 mm
 - centru viu MT2
 - șuruburi de avans - șuruburi cu bile
 - putere de acționare principală 1,4 kW, 30 - 2300 rpm
 - distanță centru 600 mm
 - înălțime centru 135 mm

Un computer este necesar pentru crearea programului si activare a frezei CNC (Computerele nu fac parte din gama noastra de produse).

Computerul asigura crearea programului, administrarea acestuia si achizitia datelor.

Programul este creat independent de masina de frezat CNC - cu ajutorul softului NCCAD Basic furnizat, programele CNC pot fi produse pe mai multe calculatoare, independent de freza CNC. Asta inseamna ca un nou program poate fi creat pe un calculator in timp ce freza functioneaza. Se mareste astfel productivitatea masinii dumneavostra de frezat cu CNC.

Masinile cu CNC pot fi folosite si in modul manual

DATE TEHNICE

Prismatic cast iron bed
prismatic cast iron bed made of diagonally ribbed gray cast iron ●
inductively hardened and ground guideways ●
Working range
center distance 600 mm
center height 135 mm
workpiece diameter max. 270 mm
turning Ø above the guideways 170 mm
bed width 180 mm
Machine precision
machine precision according to DIN 8606 ●
true running accuracy of spindle nose 0.005 mm
cylindrical turning to 100 mm cantilevered 0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips ± 0.015 mm
Main drive motor
single-phase series-wound motor speed controlled 230V, 50/60 Hz 1.4 kW
as direct current model with permanent, closed loop rpm control system ●
electronically infinitely variable drive 30 - 2300 rpm
main spindle drive, which can be adjusted to a wide cutting speed range via a potentiometer ●
with overload protection ●
dynamic torque throughout the entire speed range ●
high torque even in the lowest speed range ●
Silent running

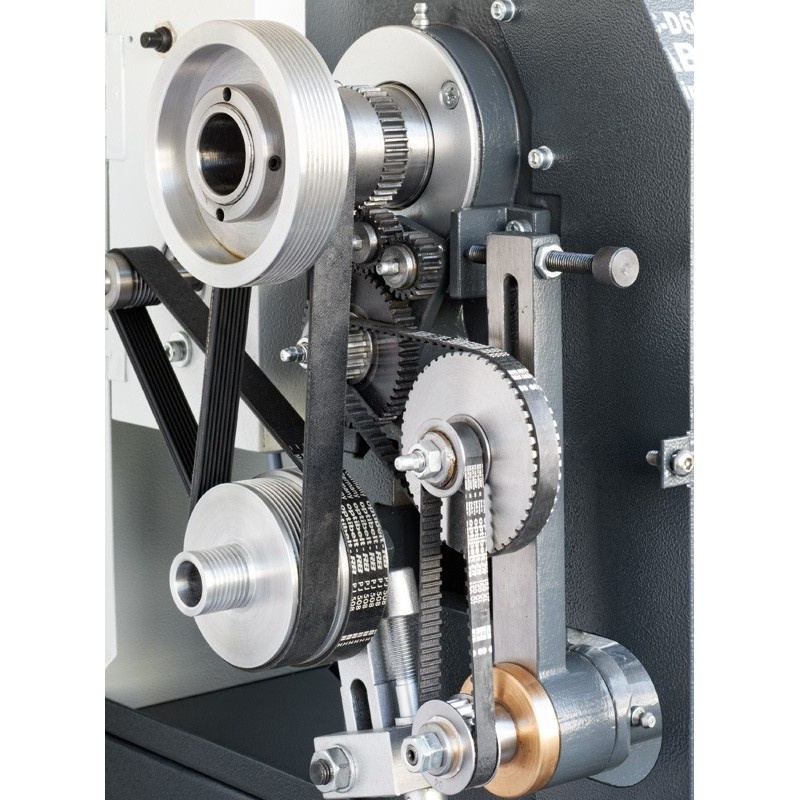

extremely silent running due to innovative belt drive ●
Drive technology
drive electronics with multiple fault monitoring circuits ●
e.g. turning a steel shaft Ø 50 mm in one infeed approx. 5 mm
Headstock
housing made of grey cast iron ●
V-shaped slot scraped by hands ●
main spindle in 2 adjustable precision DIN tapered roller bearings ●
right-left rotation of the main spindle ●
intermediate gear between main spindle and drive ●
Main spindle bore
main spindle bore Ø 30 mm ●
with ground taper insert in the main spindle MT3
Main spindle
according to DIN 6350 ●
main spindle Ø 70 mm ●
Feed screws
ball screws ●
with free of play ball lock nuts ●
incl. lead screw cover to protect the lead screw against swarf ●
to prevent premature wear and loss of precision ●
Lead screw drive
with lead screw drive and change gear quadrant for automatic feed 0.085 mm/rev
tumbler gear for left- and right-hand threads ●
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system ●
Thread cutting (in conventional operation)
change gear set for thread cutting metric 0.25 - 7.0 mm inch 10 - 40 TPI
and for automatic feed 0.16 mm/rev
Tool slide
universally adjustable ●
dovetail guides readjustable free of play ●
reading accuracy of the scale rings 0.05 mm
adjustability of cross slide 140 mm
adjustability of longitudinal slide 60 mm
longitudinal slide can be swiveled through 360° ●
max. height of turning tools 20 mm
cutting scrapers prevent dirt and cuttings entering the guideways ●
Tailstock with quick adjustment
lateral adjustability of tailstock upper part ± 10 mm
tailstock sleeve with inner morse taper MT2 ●
quill adjustable 65 mm
scale ring reading accuracy 0.1 mm
High-performance stepper motors
in X- and Z- axis ●
maintenance-free ●
high feed and acceleration values ●
high holding torque ●
Travel speed (rapid traverse)
in X- and Z-axis 30 - 1000 mm/min
Limit switch
in X- and Z-axis ●
mechanical single limit switch ●
Dimensions and weight
machine dimensions without packaging W1230 x D510 x H470 mm
weight without packaging 172 kg

Detalii

SKU
1060021
Categorii
Strung/freza Wabeco CNC ready, Ministrung, Strunguri si pachete cu CNC
Brand
Wabeco
Manual
manual_15426.pdf?rv=1747226164
Descriere scurta

– 5-ani garantie

– garantam precizia datorita productiei in Germania integrale pe masini de precizie

– contruit pentru precizie cu raport de teste emis catre consumator
